1、 Overview

NC1300S multifunctional slipform paver is a multi-purpose cement concrete construction equipment independently developed by our company. It can achieve various mold configuration modes, and is widely used in the construction fields of road drainage ditches, drainage channels, curbs, shoulder stones, concrete guardrails, cement concrete structures and farmland water conservancy ditches, replacing the traditional process and significantly improving the construction quality and speed of cement concrete structures.

The machine has a large power reserve, full electronic control, full hydraulic power drive, proportional control, three-track walking, and is equipped with automatic steering and automatic leveling control system. It can complete the vibration, paving, extrusion and other technological processes of cement concrete structures at one time.

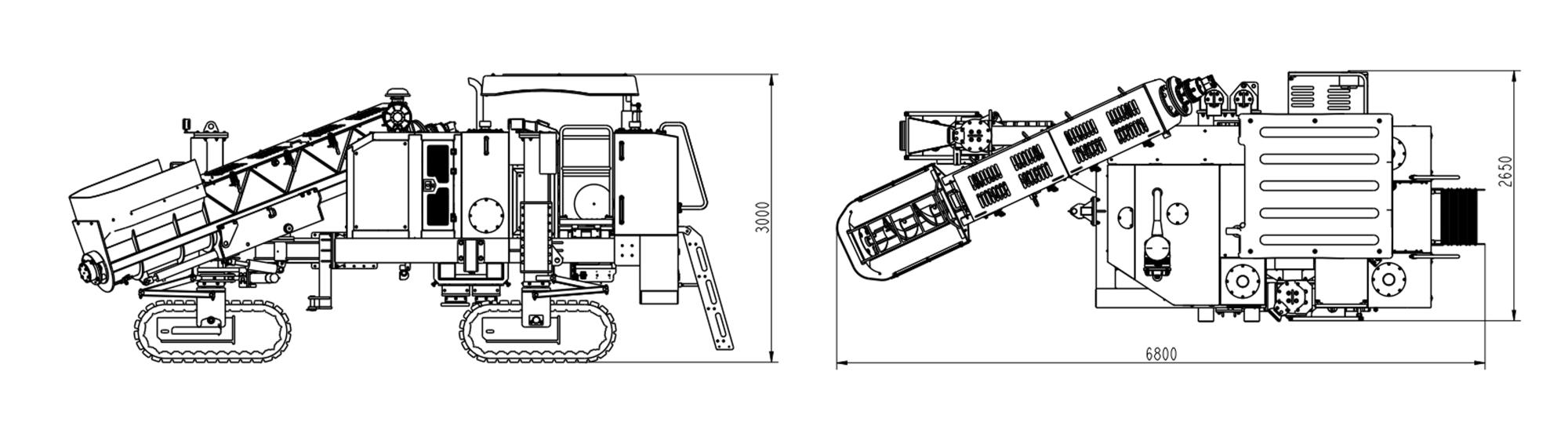

2、 Main technical parameters

3、 Performance characteristics

1. One machine can be used for multiple purposes. By replacing various molds and accurately adjusting and controlling the vehicle status, the precise slipform paving of road drainage ditches, drain channels, curbs, shoulder stones, concrete guardrails and farmland water conservancy ditches can be achieved.

2. Three-track walking, hydraulic independent drive, proportional control two-speed motor, planetary gear reducer, paving speed closed-loop control, PID regulation, to ensure the stability of low-speed paving and improve the quality of slipform paving; The front track steering device is equipped with a displacement sensor for accurate steering.

3. The engine has strong power and complies with the national emission standard of Phase IV; The hydraulic system adopts load sensitive variable control to supply oil according to the actual load size and speed, with low fuel consumption, energy saving and environmental protection.

4. Humanized design of the operating platform, human-computer interactive control screen and clear graphical identification symbols make the operation of the paver simple and easy; It is equipped with Internet of Things platform, construction management and monitoring system, and optional remote control device.

5. Steering lifting adopts hydraulic proportional control, and is equipped with two longitudinal slope sensors, one steering sensor and one inclination sensor. The sensor and controller adopt CAN bus communication to improve the response speed and stability of the equipment, ensure accurate linear control, and realize overlay paving.

6. According to the working conditions, the right paving and middle paving can be realized; The mould fixing device adopts hydraulic horizontal and vertical two-way adjustment, which can quickly replace various moulds.

7. The inclination and expansion of the auger feeding device adopt hydraulic adjustment, which is easy to operate and suitable for various working conditions; Large storage space can realize the secondary mixing of cement concrete.

8. The structure of the whole machine is compact and can meet the requirements of container transportation.

4、 Statement

Our company follows the principle of sustainable development, so we reserve the right to continuously improve our products without prior notice. The relevant content is subject to continuous improvement without notice.
