summary

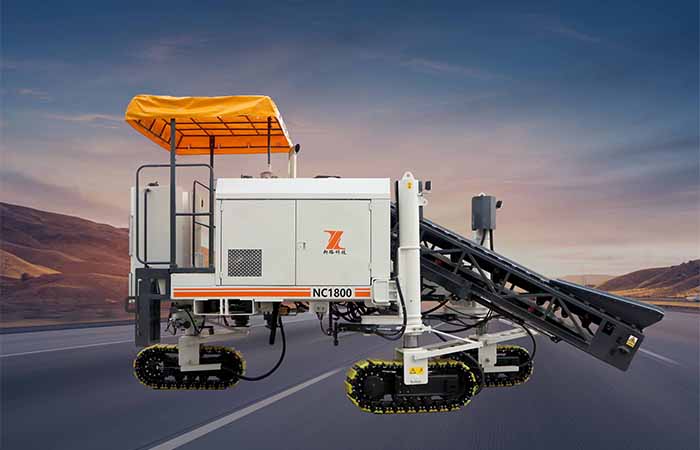

NC1800 multifunctional slipform paver is a multi-purpose cement concrete construction equipment independently developed by our company. It can achieve various mold configuration modes, and is widely used in the construction fields of road drainage ditches, drainage channels, curbs, shoulder stones, concrete guardrails, cement concrete structures and farmland water conservancy ditches, replacing the traditional process and significantly improving the construction quality and speed of cement concrete structures.
The machine has a large power reserve, full electronic control, full hydraulic power drive, proportional control, three-track walking, and is equipped with automatic steering and automatic leveling control system. It can complete the vibration, paving, extrusion and other technological processes of cement concrete structures at one time.
Main technical parameters
1. Basic performance parameters
Maximum side paving height 1800mm
Maximum paving width 3000mm
Paving speed 0~10m/min
Travel speed 0~28m/min
2. Powertrain
Engine model QSB3.9-C130-30 (Dongfeng Cummins)
Engine Emission Country III
Rated power/speed 97kW/2300r/min
Diesel tank capacity 360L
3. Walking system
Three tracks (front two and rear one), hydraulic independent drive, proportional control two-speed motor, large speed ratio planetary gear reducer, paving speed closed-loop control, PID adjustment
Track width 300mm
Track length 1600mm
Climbing capacity ≥ 25%
4. Outrigger steering lifting device
Three-track steering device is equipped with displacement sensor, precise proportional control, crab walking, cooperative steering, and small turning radius; Outrigger lifting hydraulic proportional control
Minimum turning radius 4600mm
Outrigger hydraulic lifting stroke 1120mm
Outrigger mechanical adjustment stroke 500mm
5. Outrigger swing sliding device
Hydraulic adjustment right front outrigger internal and external swing, left front outrigger extension, rear outrigger extension
The inner and outer swing amplitude of the right front outrigger is 680mm
Telescopic stroke of left front outrigger 1100mm
Telescopic stroke of rear outrigger 710mm
6. Hydraulic system
Imported brand load-sensitive multi-pump hydraulic system, proportional control walking, outrigger steering lifting, vibrating rod
Hydraulic oil cooling large size radiator, forced air cooling
The hydraulic oil filter is equipped with oil suction filter and the filtering accuracy reaches 10 μ m
Return oil filter
Hydraulic oil tank capacity 410L
7. Electrical control system
Humanized design of operation console, human-computer interactive control screen, clear graphical identification symbols, 24V voltage power supply system
Configure two longitudinal slope sensors, one transverse slope sensor and two steering sensors
The longitudinal slope, cross slope and steering adopt electronic automatic control, and the sensor and controller adopt CAN bus communication
Equipped with Internet of Things platform, construction management and monitoring system, and optional remote control device
8. Auger conveyor
The hydraulic motor drives the reducer, and the tilt angle and telescopic hydraulic adjustment
Twister speed 0~70r/min
The size of the auger feeding device is 4400mm long, and the blade diameter is 420mm
9. Vibrating compaction system
Imported hydraulic vibrating rod, with independent adjustable vibration frequency and proportional control
Vibrating rod interface 8 (optional 10)
Vibrating rod frequency 0~200Hz
10. High-pressure flushing device
Hydraulically driven high pressure ceramic plunger pump, equipped with coil device and high pressure washing water gun
Water tank capacity 310L
11. Mold and mold fixture
According to the working conditions, various molds can be customized to meet the requirements of right paving and middle paving
Hydraulic horizontal stroke of mold fixture 1000mm
Hydraulic vertical stroke of mold fixture (double oil cylinder) 360mm
Mechanical vertical stroke of mold fixture 240mm
12. Overall dimension and weight (transportation status)

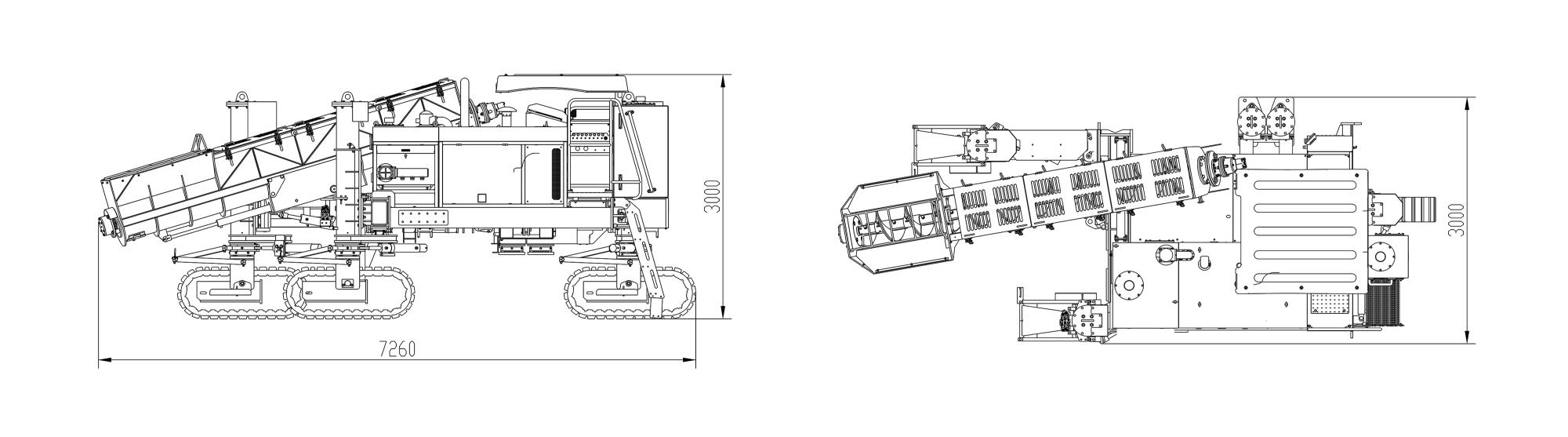

Transport dimension (long × wide × High) (7260 × three thousand × 3000）mm
Operating Weight 15500Kg
