The curb stone sliding machine has been matured and applied in the side-sliding mode construction of the road. How many meters of curb can be completed in one day by a curb stone sliding machine? How many tankers or mortar mixers are needed, how can they be cured after the pouring is completed? Here Xuzhou New Road Technology will share with you the construction experience of the curb stone sliding machine:

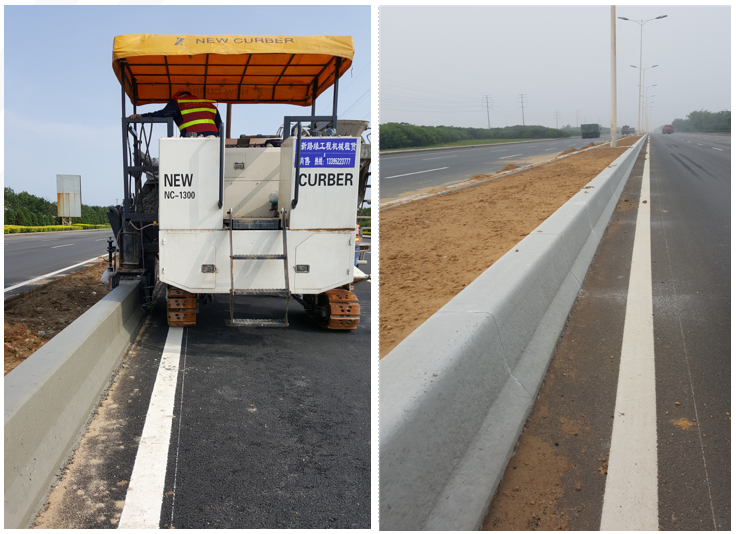

The above is a case of our sliding form construction in the sink of Pingshan, Shanxi. A case study of the site situation on this site is as follows:
How many meters are completed and the size of the curb is related to the cooperation of the workers. It also has something to do with what kind of sliding machine you use. If you use the new road edge NC1300 of the new road technology, the integrated slipform kerb stone sliding machine, usually about 1 km a day. Moreover, this kind of machine does not need to be equipped with a generator, and it has its own generator. It can be equipped with a mixer. About post-maintenance is also very simple, pay attention to protection.

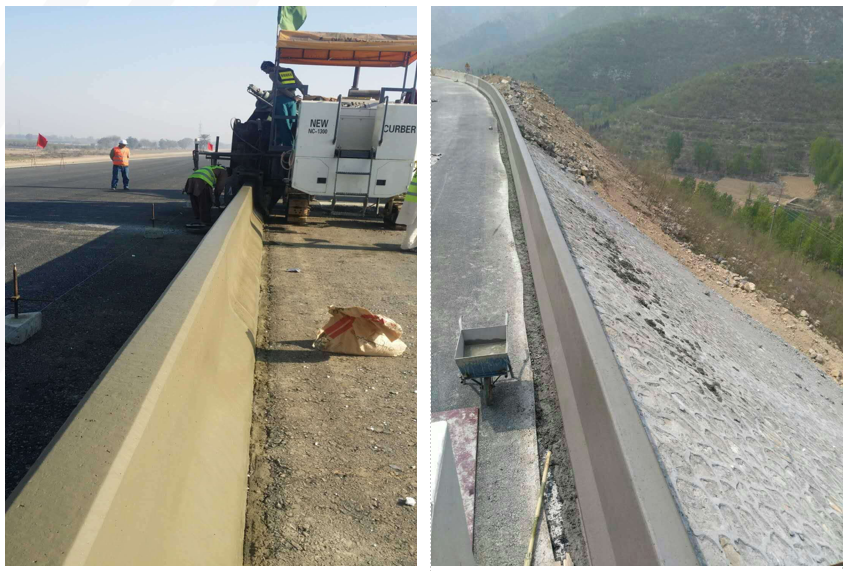

The NC1300 multi-function curb sliding mold machine is a multi-functional cement concrete slipform paver independently developed by Xuzhou Xinlu Intelligent Technology Co., Ltd., which is specially used for precision paving various cement concrete structures. The paver moves along the baseline, and the concrete is conveyed by a forward concrete mixer. The screw is then sent to the forming mold by a screw conveyor. In addition, the conveyor belt can be fed. Slipform paver is widely used for paving stone, sink, hard shoulder, anti-collision guardrail and other cement concrete structures. Its paving height can reach 1.3m and paving width can reach 1.8m.

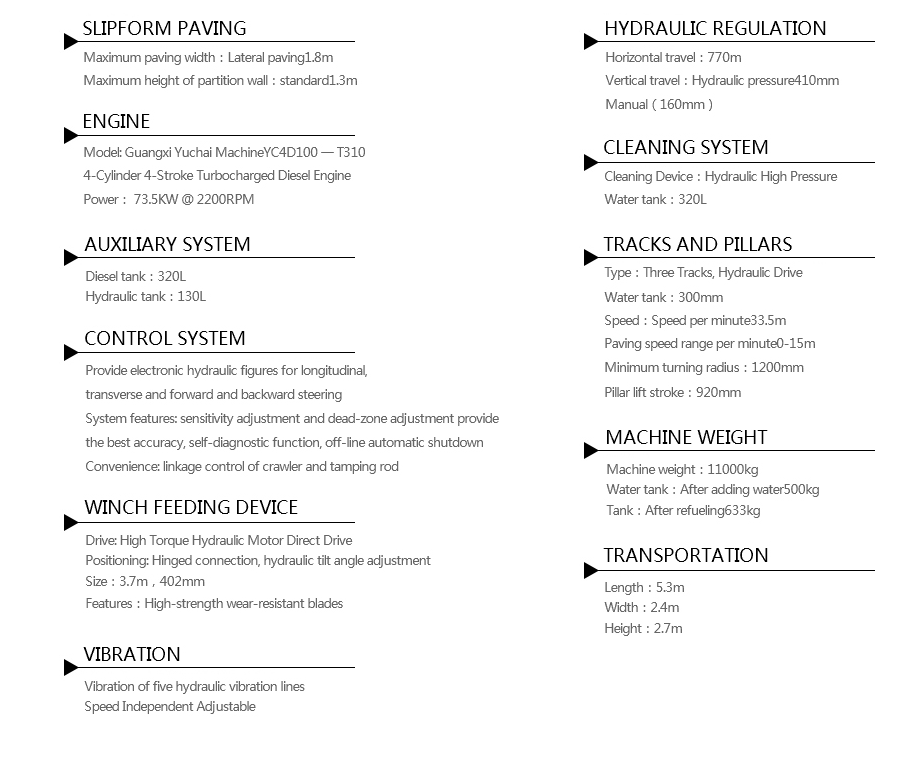

NC1300 type multi-purpose curb stone sliding machine technical parameters:
Main features of NC1300 multi-function curb sliding machine
1, dual controller dual system
This product is equipped with two independent control systems. When there is a problem in the system, it can be quickly switched to enable the use of the backup system to ensure the orderly construction of the sliding mode.
2, personalized design, at a glance, easy to operate, quickly and comprehensively master
The modern control panel and the graphical identification of the cleaning make the paver operation easier and faster.
3, accurate linear control
Superimposed paving is achieved with high-precision steering sensors.
4, multi-channel sensor elevation control
In order to ensure the NP-1300 has a better paving effect during the construction process, the product is equipped with two vertical and three horizontal elevation leveling sensors, and the hydraulic pressure is proportionally controlled, which improves the response speed and stability of the sensor, thereby improving paving. The flatness ensures the accuracy and quality of the paving structure.
Want to know about concrete paver, curb stone sliding machine, roadside stone forming machine, slipform paver rental, find Xuzhou New Road Intelligent Technology Co., Ltd.
|
